Label origin



Parameter to set how labels are added to nested patterns.



Use this parameter to select the required orientation for the part labels used on nested patterns.



Select an option from the list



The options are:-



Bottom left

Top right

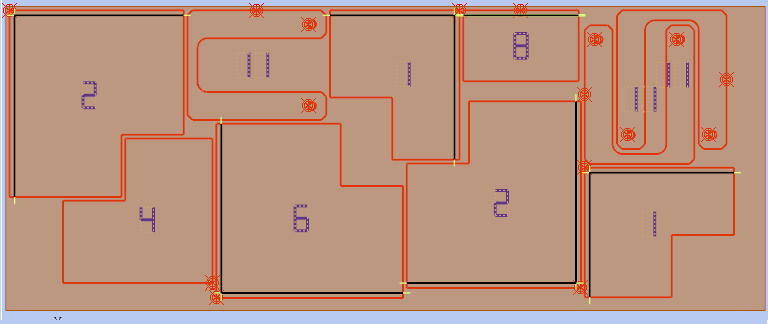

If the label origin is set to Bottom left and the viewing origin is also Bottom left, then the part identifiers will be correctly oriented as shown below:

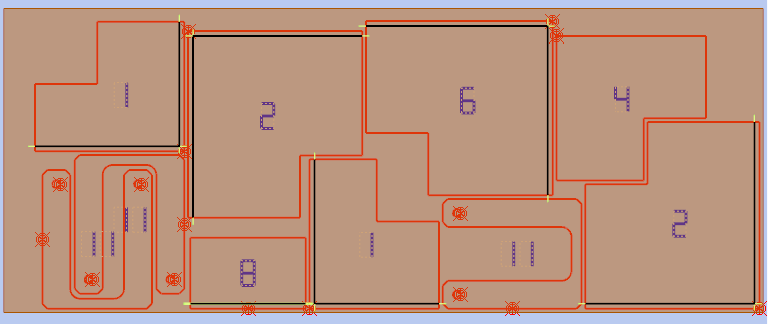

If the label origin is set to Top right and the viewing origin is also Top right, then the part identifiers will be correctly oriented as shown below:






Note



 - This parameter is only available for WoodWOP based transfer processes
