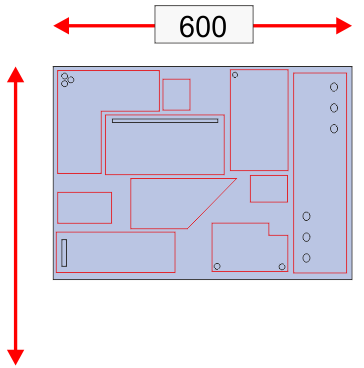

Maximum image dimension - pixels



Routing / Nesting system parameter to set the maximum dimension of MPR(X) images






This applies to MPR drawings in the following places:



Review runs - nesting drawings

Review runs - nesting preview

Review runs - machining drawings

Review runs- machining preview

Internal labels (not saw labels)

Online PC labels



Note:



This parameter will only apply to the WoodWOP 6.0 + style
