Period material summary

A report which shows the materials used in each month / week, in material code order

At the main screen:-

●  Select: Review - Period / history analysis

●  Select the required date range

●  Select Period material summary from the Reports menu of the 'Report viewer'

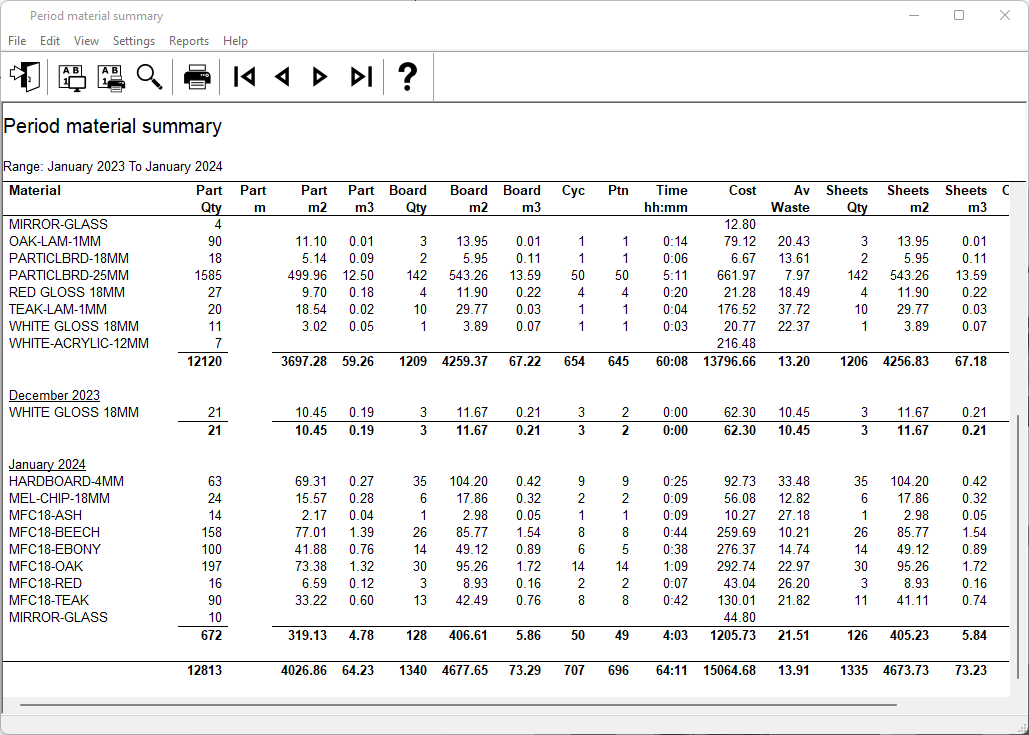

The program displays the report on screen in the 'Report viewer'.

The default data on the report is:-

Material code

Part Qty

Part length (sundry parts)

Part area (M2 or Ft2)

Part volume (M3 or Ft3)

Board Qty

Board area (M2 or Ft2)

Board volume (M3 or Ft3)

Cycles

Ptns

Time (hh:mm)

Cost

Av waste %

Sheets Qty

Sheet area (M2 or Ft2)

Sheet volume (M3 or Ft3)

Offcuts used Qty

Offcuts used area (M2 or Ft2)

Offcuts used volume (M3 or Ft3)

Av scrap %

Av offcut %

Av yield %

Report - options

There are menu options to set up the printer, page, report range, report content and layout. The report can be separately customised for both on-screen and printed versions. See the topic: Stock report layout and settings - Overview

report settings (change report layout)

print layout (change layout for the printed report)

expand on-screen view (4 levels of zoom)

print report (uses the settings from 'Print layout')

information about the report contents and operation

exit without printing

File - Export  - export data

File - Modify range  - change items included in the report

Use the Navigation buttons to move between reports (or the Reports menu option).
