A report showing all runs produced in the selected period (in date order)
At the main screen:-
● Select: Review - Period / history analysis
● Select the required date range

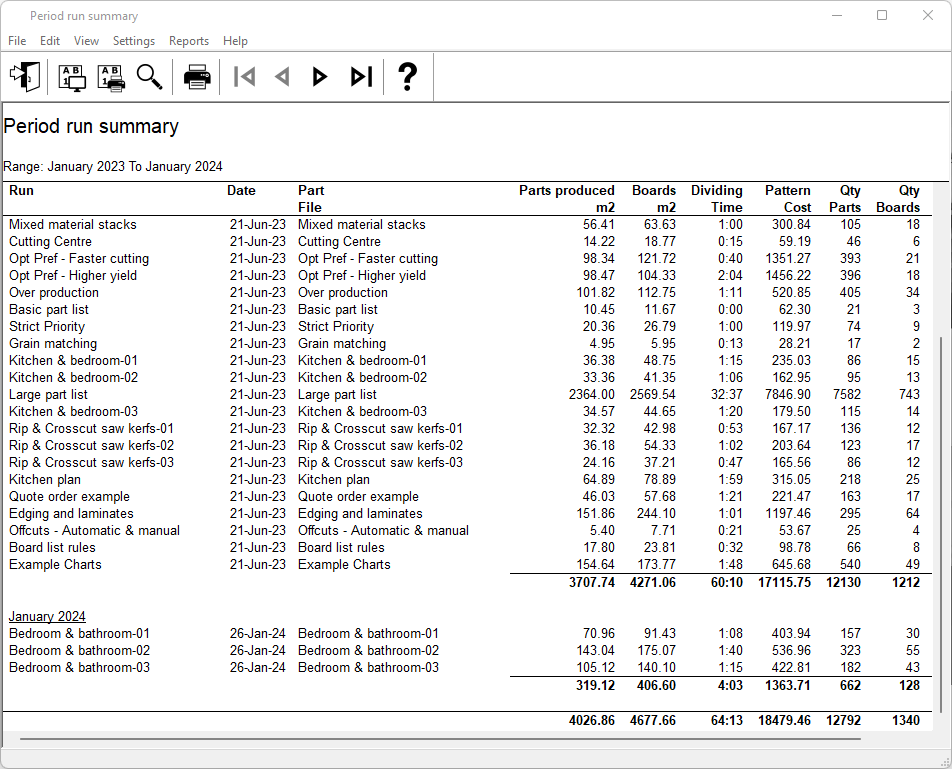

The program displays the report on screen in the 'Report viewer'.
The default data on the report is:-
Run name
Date
Part list name
Part area (M2 or Ft2)
Board area (M2 or Ft2)
Total time
Pattern cost
Qty parts produced
Qty boards used
Qty ptn
Qty cyc
Av waste
Sundry cost
Divide value
Sheets used
Offcuts used
Av scrap %
Av offcut %
Av yield %
Offcuts created (Qty)
Report - options
There are menu options to set up the printer, page, report range, report content and layout. The report can be separately customised for both on-screen and printed versions. See the topic: Stock report layout and settings - Overview
report settings (change report layout)
print layout (change layout for the printed report)
expand on-screen view (4 levels of zoom)
print report (uses the settings from 'Print layout')
information
about the report contents and operation
exit without printing
File - Export - export data
File - Modify range - change items included in the report
Use the Navigation buttons to move between reports (or the Reports menu
option).
