Set speeds and cutting times for saw
With these parameters set the various times and speeds for the main actions of the saw, for example, time to load each bundle, time to turn board, rip speed ... These settings are used in optimising to estimate the cutting time of each pattern and also used in Summary reports for times and costing.
Notes
- If the Saw parameter: Faster operation with small books is set the tab Speeds and times 2 is unlocked so that times for the faster operations can be entered. The faster times do not apply to all the speeds and times parameters.
- Where required the cutting time can be entered to 0.1 seconds

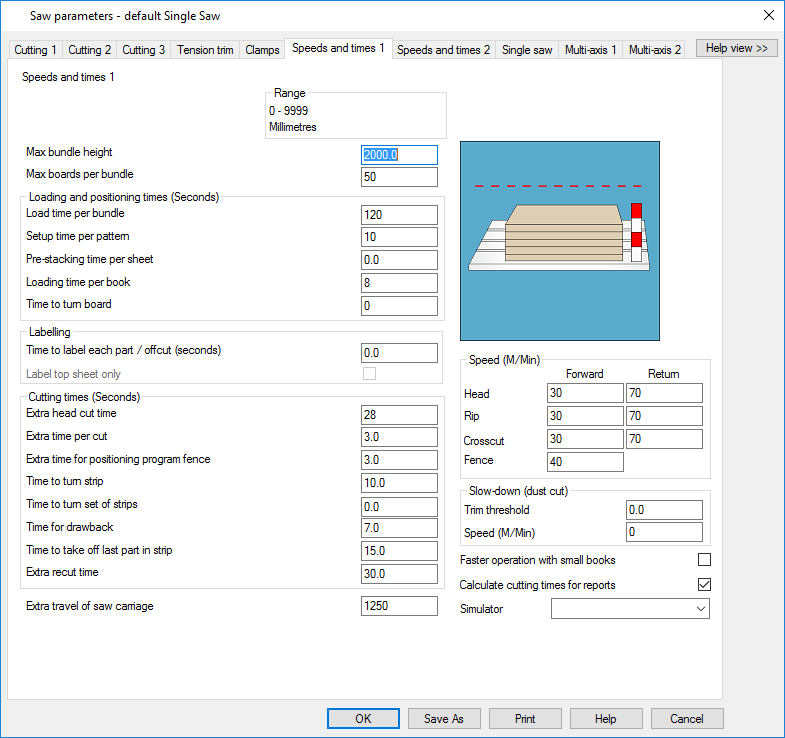

Speeds and times 1
Labelling time per part / offcut
Pre-stacking time per sheet
Extra time per cut
Time to turn strip
Time to turn set of strips
Time for drawback
Time to take off last part in strip
Extra recut time
Multi axis 2
Time for positioning book
Extra time for outfeed waste drop
