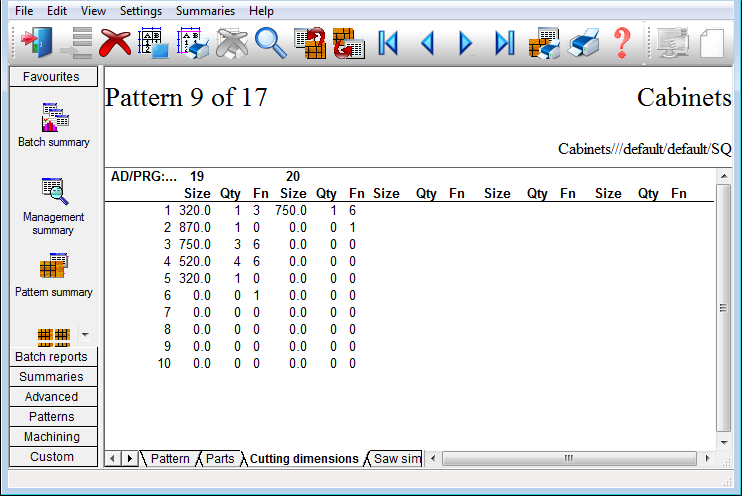

Details of cutting instructions (dimensions) for a pattern
For some saw models the cutting dimensions are calculated. These are shown on the tab at the foot of each pattern (if required).
Dimensions are shown in decimal inches or millimetres
Use the Navigation buttons, Summaries menu or Stacked toolbar to browse the summaries. Many Review Runs options are also available on the Toolbar
adjust on-screen column and
row width
zoom display in / out
print current report
exit
Notes
The Saw models that use cutting dimensions are:-
9 - Single Homag/Holzma Compumatic II / Topmatic / Micromatic
31, 32, 33, 34 - Homag saw models CH04/CH06/CH10/CH12/CH03+/CHF320/CHF41/CHF51
41 - Sliding table saws
51 - Single Schelling
61 - Single SCM
81 - Single saw - CPOUT compatible
