How parts are destacked at each station
Where the Destacking module is used there are extra reports for the destack information. At the Review runs screen:-
● Select: Summaries - Destacking
or
Select
the Toolbar option
This is a list for each pattern of how the parts are de-stacked and where.
Use the Navigation buttons, Summaries menu or Stacked toolbar to browse the summaries. Many Review Runs options are also available on the top Toolbar
Navigation
Adjust on-screen column and
row width
Zoom display in / out
Print current report
exit
The report content can be changed via the option 'Settings - Report settings'. There are a number of other fields and calculated data that can included in the report. For full details of the on-screen options see help topic: Review runs screen
Report Contents

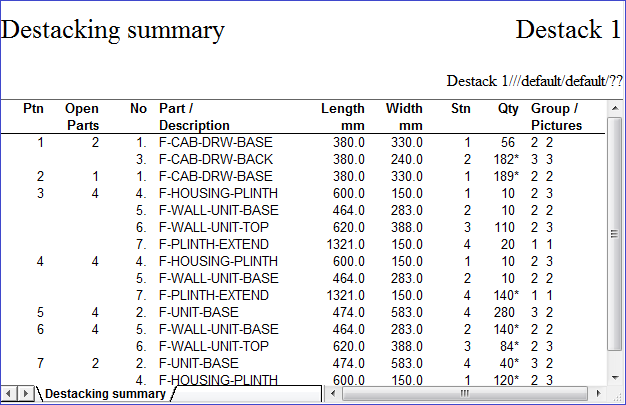

The report typically shows the following information
Ptn - pattern number
Open parts - number of open parts
Part code - part code or description
Part length - finished length of part
Part width - finished width of part
Stn - number of station that part is destacked on
Qty - quantity of parts destacked for this pattern
Group/picture - number in length and width or pallet group
The symbol * indicates that the parts are closed on this pattern.
Number of open parts - This is the number of open parts shown on the destacking summary. An open part is a part that is not yet complete, that is, there are more of this part to be cut on a later pattern.
Quantity destacked - This is the number of parts (of a given part type) destacked for this pattern. The symbol * indicates that the parts are closed on this pattern.
Group or picture - This column usually shows the destacking picture for the part. That is, the number of parts in the length and width of the pallet and the orientation of the parts on the pallet. e.g. 1 2 !
Where ! indicates that the parts are rotated on the pallet.
If using an information box in the part list to store a pallet group for each part this column shows the pallet group rather than the destacking picture
Report settings
The report content can be changed via the option 'Settings - Report settings'. Other fields available are:-
Material code
Board code
Cut so far
Total required
Total produced
Information boxes
Open groups
