How parts are produced over the pattern cutting sequence
This advanced summary shows how parts are produced if the patterns are cut in the sequence shown. Use this report to assess the spread of parts over patterns and plan production or reschedule runs accordingly. At the Review runs screen:-
● Select: Summaries - Distribution
or
Select
the Toolbar option
The parts per pattern item nnn/mmm is shown for each occurrence of a part type on a pattern. nnn is the number of parts produced by pattern number mmm
This shows how the any part is spread over the cutting. For example, Part 1 starts cutting on pattern 22 and is complete by pattern 37.

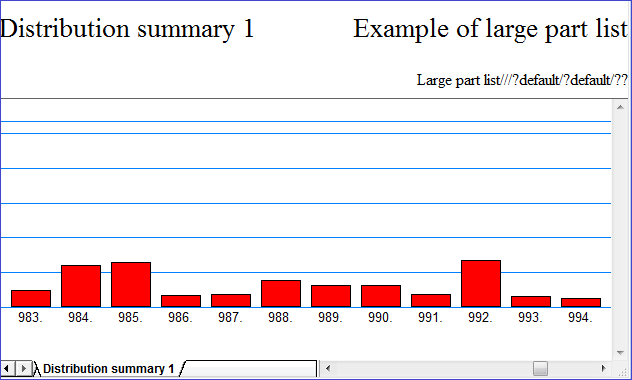

The tabs at the foot of the report can be used for custom graphs and charts, for example, the number of parts produced in each pattern.
Use the Navigation buttons, Summaries menu or Stacked toolbar to browse the summaries. Many Review Runs options are also available on the top Toolbar. As well as the default fields shown the report can be modified by removing or adding extra fields (see 'Settings - Report settings). A list of available fields for the report are shown.
adjust on-screen column and
row width
zoom display in / out
print current report
exit
For full details of the on-screen options see help topic: Review runs screen
