How to use drawings with forms and labels
Each product or part in a library can be linked with a drawing in the drawing library by the unique drawing code. Once the link is made use the options in Form and label design to include the part or product drawing on labels and forms.

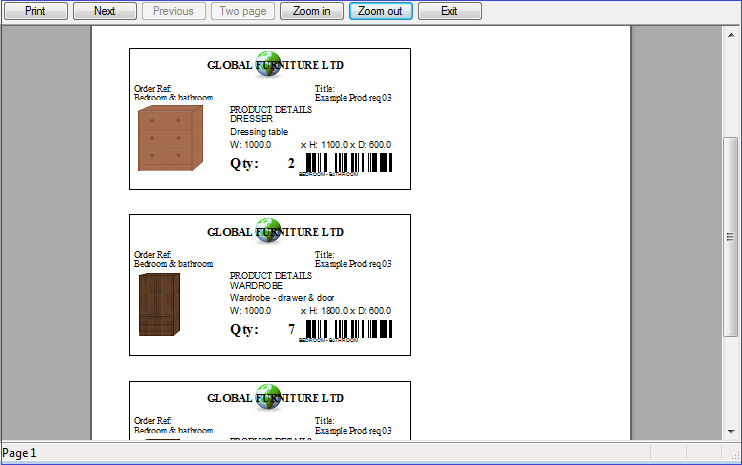

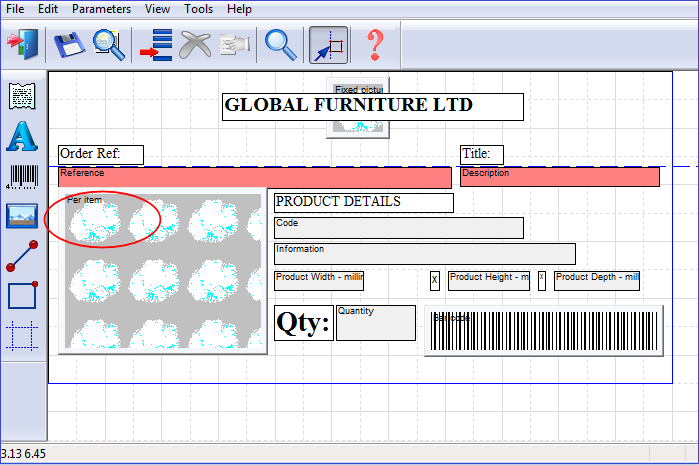

The drawing is entered as a 'picture' item and in this example there is a picture per item so for each item shown the picture (if any) is also shown.
The drawing can be linked with any part or product item of design object type ITEM.
