Save (libraries)



Library option to store the current on-screen data



Applies to Machining, Drawing library, Part library, Product library



At the library screen:-



 Select: File - Save

or

Select the option from the top Toolbar



The item on screen (for example, a machine drawing or a product) is saved.



- For an existing record the program does NOT prompt to confirm the save action

- For a new record the program prompts for the new code (if a code was not entered at the library screen)



To save a record under a different code.

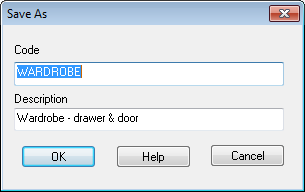

 Select: File - Save As



The program prompts for the code.





 Enter a new code or over-type the existing code

 Enter an optional description



OK to confirm



Notes





- The operation of 'Save' is different for the part library and product library for new records as in this case data cannot be saved without a part or product code entered at the library screen. 'Save' does not prompt for a new code but saves the record automatically.
