Destacking parameters - Overview



Settings for off-stack stations



Destacking only



The destacking or off-stacking stations are described by a set of 'Destacking parameters'. Use these to set the station sizes and other rules about the off-stacking operation. At the main screen:-



 Select: Parameters - Destacking

or

Select the Toolbar option

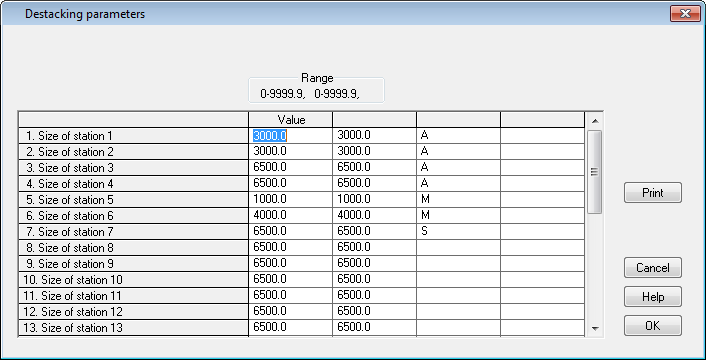

The program shows the parameters screen.





The parameter may take a value in up  to 4 columns. For example, the station size covers. Length, Width and station type (automatic, manual ...). Check each parameter carefully and make the required changes.



OK to confirm



To NOT use the parameters set all the station sizes to 9999 x 9999





Print - take a hard copy of then list

Help - information about this dialog

Cancel - abandon changes





See also
