Edit destacking data



Options to create / change library data



The destacking library is a list of records; one record for each style.





Each record has a unique reference; the Destacking style code (BASE1, PLT/1 ...)



Click on a row or cell to make changes.



To add a new record - move to the empty row and enter the record. To create a new row press RETURN on the last box of the final row.



Where a column has a list of options (for example, Material) click on the button for a list of options

Save all changes

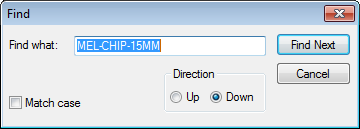

Click on a column then select the Find symbol to search for an item



The program prompts for the text to search for.





The search only applies to the current column.



Select a row and choose the copy symbol to make a copy (Ctrl C)

Move to a new row and choose the paste symbol to transfer the copied data (Ctrl V)



The copy and paste for a row does NOT copy the reference code as this has to be unique.



Select a row then select the delete symbol to permanently remove a record (Ctrl X)

Exit



Accelerator keys - The following key combinations are available when editing - these are the standard Windows options.



Ctrl C - Copy

Ctrl V - Paste

Ctrl X - Delete

Ctrl P - Print

Ctrl Z - Undo



These options are also available on the 'Edit' menu.



View menu



The view menu options are:-



Toolbar - show/hide the top bar

Refresh - update the screen and data shown





See also
