Sequence - forms and labels



Form / Label parameter to determine the way in which labels are produced



1 - pattern sequence

2 - part list(item)sequence

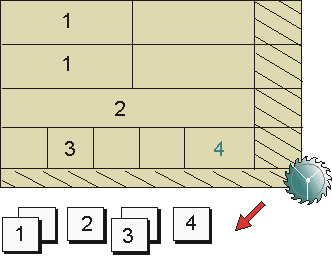

Pattern sequence - The labels for each part are printed in the order in which the parts are removed from the saw.





This sequence depends upon the saw model, the nature of the pattern, and your way of working. The sequence chosen is determined from the saw microprocessor type.



In a few cases there are alternative ways of cutting material, and special circumstances for a particular saw, so the label sequence may not match the saw sequence exactly in every situation. Recuts and multiple recuts are labelled at the cross cut stage of the operation, and not at the end of the cycle when they are picked up for the recut operation. Offcuts are labelled (when requested) in the sequence in which they occur on the pattern.



Part list (item) sequence - Labels are produced in the same order as the labels appear in the part list (item number sequence).
