Attention.gif No valid orientation for board



May occur when optimising a part list



This is a warning only - select Continue to proceed

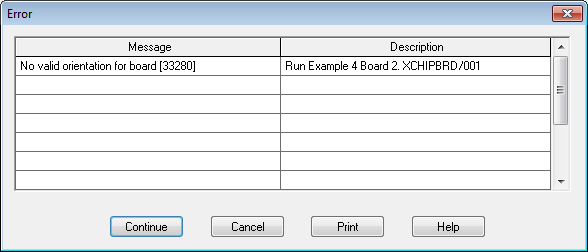

The board (or boards) involved are listed; for example:-






The board number shown is the item number in the board list for the run/optimisation.



This typically indicates the board is too small or too large in one or both dimensions; the dimension does not obey the saw parameter settings for the Maximum or Minimum length or width for boards. The board is NOT used for the optimisation.



It may also indicate the board is set to be used as a rotated board only but, for example, the board length does not obey the saw parameter setting for the Minimum or Maximum board dimensions.



- Check the board list

- Check the saw parameter values
