May occur on optimising with grain matching
Only applies where a template is set to: Cut parts in main pattern
The component parts of the template are often produced via recuts.

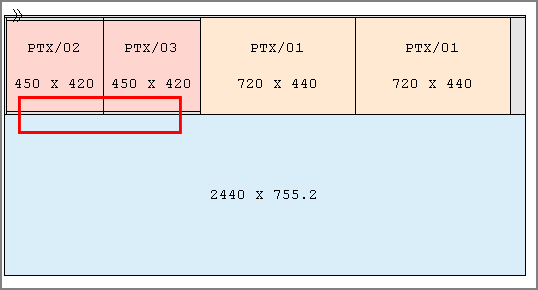

This error warns that the recut trims for the pattern are overridden as there is not enough room to satisfy the minimum front and rear recut trims.
The width of the template is set by the part width and the rip trims set in the template, for example:-
420 + 10 + 10 = 440
If the minimum recut trims (front and rear) for the run are set at 15mm (30mm) there is not enough space on the strip to obey this constraint and an error is reported.
Check the pattern and template and re-optimise.
Note - where possible it is best to set the rip and crosscut trims on the template to match the recut trims for cutting the pattern.
|
38085 |
