Use the data entry grid to enter edging data

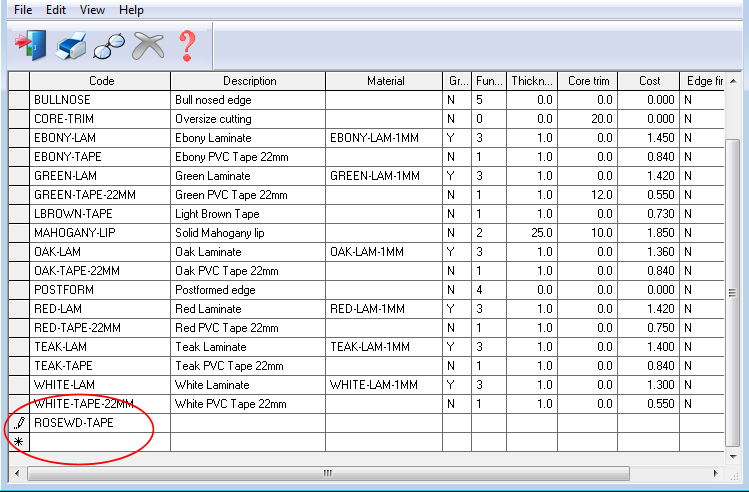

To add a new edging record. At the Edging library screen:-
● Move to an empty row marked with a * symbol
● Enter the data in the first box (the Edge code)
● Use Tab or the mouse to move to the next column
Click on Grain, Function, or
EdgeFirst fields to get the list of options
to select
Click on the Material field to get the list of materials to select
The details of the data required for each column are described in the topics in the section: Edging Library
At the menu and on the keyboard the standard cut and paste options are available.
Cut (Ctrl X)
Copy (Ctrl C)
Paste (Ctrl V)
Undo (Ctrl U)
Delete (Del)
Right
click to pop up the Edit menu
Copy and Paste rows
- Select a row (left click at the leftmost cell) and select Copy from the Edit menu
- Click at the leftmost cell for a new line (marked with an asterisk) select Paste from the Edit menu
Each edge code has to be unique so the program adds '~1'. '~2' ... to the new codes - these can be corrected manually.
(The copy and paste for a row cannot be undone)
Other options
The main edit options are on the Toolbar at the top of the screen and there are further options on the menus. The main options are:-
adjust on-screen column and
row width
find record
print
delete record
exit
