Labels for printing at saw - Overview



How to design and use labels at the saw



To print labels at the saw design a label template file (that matches the restrictions for saw labels) and send the template file to the saw. The features that can be set for each label depend upon the Saw type (CADmatic 1/2, Homag, CADmatic 3/4/5 or Online Label PC). At the Main screen:-



 Select: Tools - Saw Label Designer



At the Saw sub-menu select the saw type:-



CADmatic 1

CADmatic 2

CADmatic 3

Homag

Online label PC

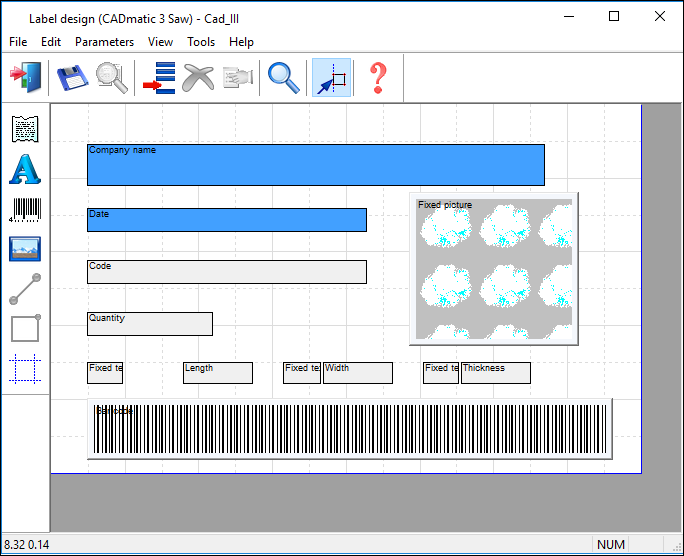

The label designer screen is shown.





 Create the label design in the usual way

 Save the label design when finished



When the design is complete it has to be sent to the Saw. At the Designer screen with the label design loaded:-



 Select: File - Export

 From the sub menu select the saw to export to.



For more details of the Export process see the topic: Export label design
