Option to select part drawings

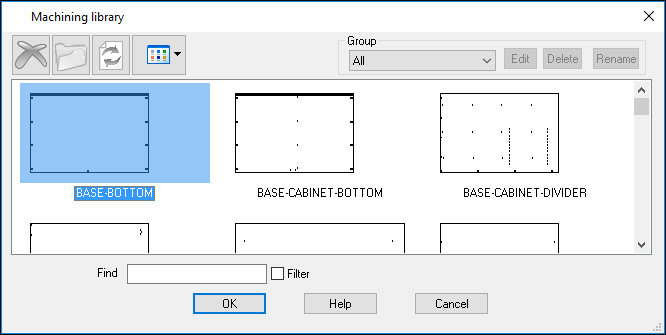

The list box shows the drawings in the library as thumbnail pictures.
● Scroll to the part required or use the Find option to locate the part
Double click to select an item
or
Single click to select and select Ok to confirm
Searching and Filtering the list
For longer lists it can be useful to use the Find option to search for the item or use the filter option to limit the list to a sub-set based on some text.
To search for an item (e.g. a part list):-
- Enter text in Find box
Highlight cursor moves automatically to the first item starting with that text (an incremental style of search)
- Select Ok to confirm the selection
Edit the text to refine or change the search
To Filter the list:-
- Enter text in Find box
- Click Filter box
List displays only items starting with the text searched for.
Drawings
In the part list, part library and review machining only machining drawings are shown in the selection dialog. Links and nesting templates are not shown.
