Take a hard copy of a drawing
At any drawing:-
● Select: File - Print
or
Select the Toolbar option

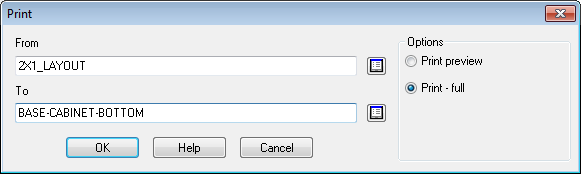

The program prompts with a dialog for the enter a range for the codes to print.
If there is a drawing on the screen the range is set to print only this drawing. At the options select Preview (several small thumbnail drawings per page) or Full - one large drawing, part details, and instructions per page.
Use
the list box to select a range
Notes
- Can also use Print with a new or blank drawing on the screen - in this case enter the codes for the range of drawings to print.
- For an edited drawing on the screen the program prompts to save the changes before continuing.
