Option to allow custom or other instructions to be passed to a Machining centre for each instruction
At any drawing:-
● Select the button next to the Tool box

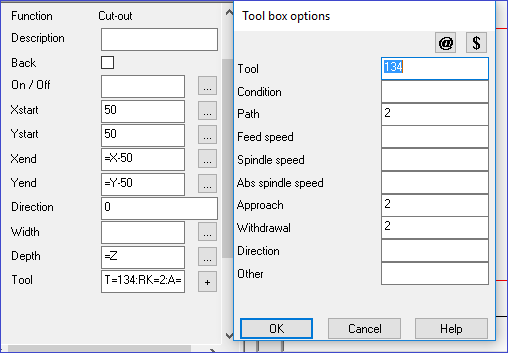

An expanded dialog for the Toolbox is shown:-
The 'Other' box on this dialog allows for the entry of any other settings that are not currently offered.
XX="5":XXX=TEXT
The instructions need to be separated by colons. When output to the MPR(X) file each instruction is put on a different line. Instructions are written out to the MPR(X) file with no formatting.
For example if: XX="5":XXX=TEXT is entered in the Other field then the MPR(X) file contains:-
XX="5"
XXX=TEXT
A maximum of 10 Other instructions can be output - any more are ignored.
