Summaries - Machining preview



Thumbnail view of machining drawings for a run



At the Review runs screen:-



 Select: Summaries - Machining preview

or

Select Stacked Toolbar option (Machining tab)

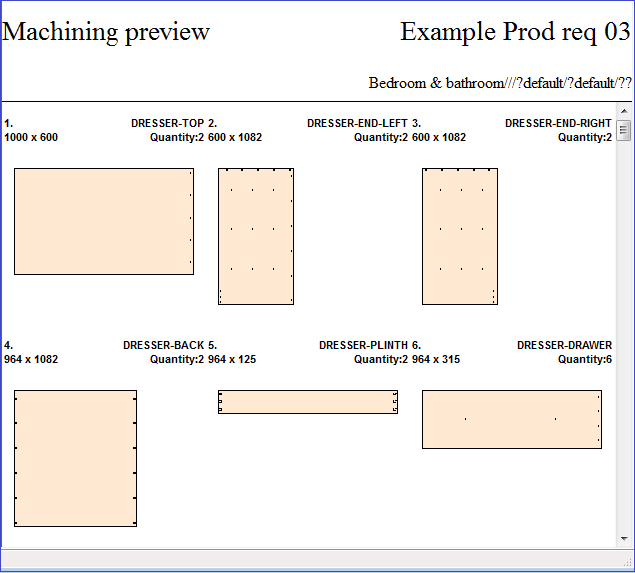

The screen shows a preview of the machining drawings





- Click on a thumbnail to move a full screen view for a single part



Use the Navigation buttons, Summaries menu or Stacked toolbar to browse the summaries. Many Review Runs options are also available on the top Toolbar



adjust on-screen column and row width

zoom display in / out

print current report

exit



For full details of the on-screen options see help topic: Review runs screen



At the full screen view the instructions can be edited if necessary before transfer to a machining centre.



Drawing and instructions contain the fixed sizes that were calculated for this run; they do not show the formula
