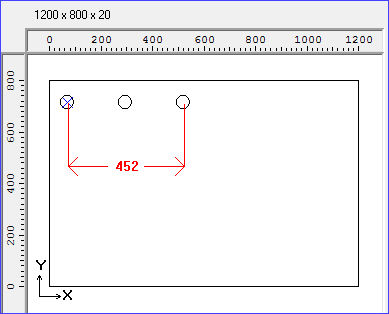

Line marking the distance between two points
● Select: Function - Dimension
or
Select
option from the Function Toolbar
Move the cross hair cursor to the required location
First click - Start
Second click - End
Move to create offset
Click to finish
● Adjust the values with the Machining instructions pane at the left
Use the Xstart/Ystart and Xend/Yend to set up the dimension to be measured (vertically or horizontally).
If Direction is L or R the vertical distance is measured otherwise the horizontal distance is measured.
The offset field sets the distance for the dimension line from its measured points.
