Drawing with the mouse (machining)



Guide to using the mouse for instructions



For many functions such as drilling and routing use the mouse to draw the function



The action of the mouse depends on the function (the details are described for each function), for example, for the Vertical drill

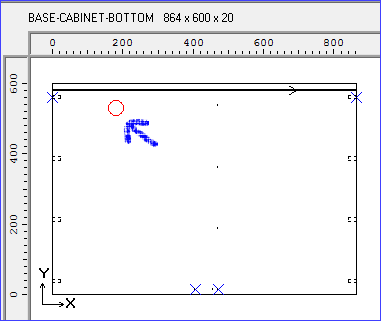

Select the Vertical drill tool (function)



 Drag the cross hairs cursor to the required location

 First click selects the centre point.

 Move the mouse to draw the radius

 Second click selects the radius.





For accurate positioning and sizes adjust the function via the Machining instructions pane at the left of the drawing.
