Machining centre parameters - Overview



Use these parameters to describe Machining centres



These parameters describe features of machining centres - these can be different and require different values depending on the type of machine and the manufacturer (for example, Homag). The parameters typically deal with items like, drilling speeds, groove speeds, time for routing, extra tooling instructions... At the main screen:-



 Select: Parameters - Machining centre parameters

or

Select the Toolbar option

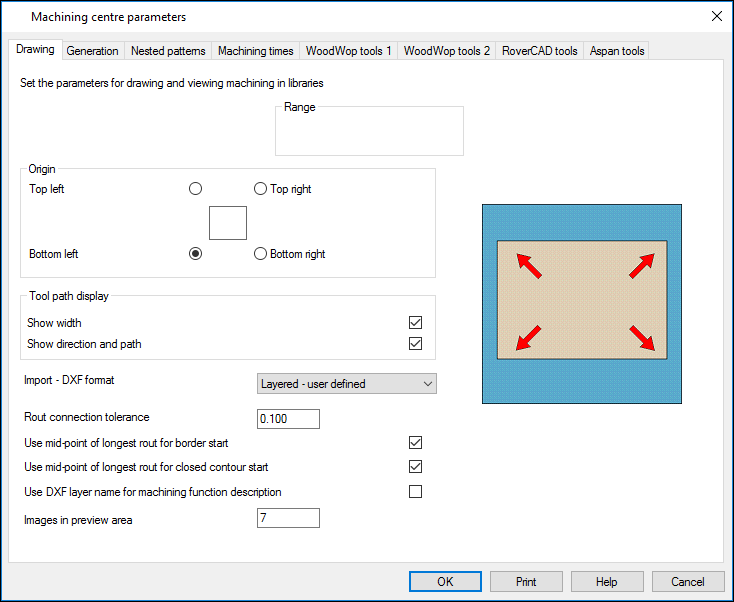

The Machining parameter screen is displayed.





 Check the values and adjust as necessary.



 Use the tabs to move to different sets of parameters. Only check those tabs (set of parameters) which apply. The groups of parameters are:-



Drawing

Generation

Nested patterns

Machine times

WoodWop Tools 1

WoodWop Tools 2

RoverCad Tools

Aspan Tools



Also look at the Machining centre transfer parameters. These are needed to set up the link to the machining centre and determine the type of data transferred (this can vary for each type of machining centre).
