Archive a run



File management option to compress and store files



The archive process produces a single file (PTA) that contains enough data to reproduce a run. It can be useful for compressing and storing older files that are rarely needed.



('Backup' is an alternative - this stores an entire user profile in a single file).



At the File Management screen:-



 Select type of file as Optimisations (Runs) in the left pane

 Select file(s)



 Select: File - Archive

or

Select the Toolbar option

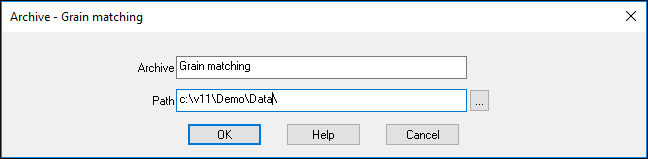

The program prompts to select a file name and/or directory to archive to.





Use the list box to select a path



 Select OK to finish



A number of files can be associated with a run, for example, run number 00023 could consist of the following files (and possibly others)



00023.PTN         - pattern file

00023.CUT         - cutting dimension file

00023.XBD         - offcut file

00023.STP         - strip file (strip optimiser)

TEST.PRL          - parts

TEST.CTT          - cutting list

TEST.BRD          - boards

STANDARD.PRM      - optimising parameters

SINGLE.SPM        - saw parameters

SYSTEMV11.CTL     - system parameters



All the files including the parts and board files are renamed even if the original part list name was different.



Other options



Help - information about this dialog

Cancel - abandon Archive





Notes



- Archive is also available from a pop-up menu (right click with mouse)



- The Path for archive is offered as the default location if set rather than the path for data.
