Design for labels at saw
To print labels at the saw design a label template file that matches the restrictions for saw labels and send the template file to the saw. The features that can be set for each label depend upon the Saw type (CADmatic 1/2, Homag, CADmatic 3/4/5 or Online Label PC). At the Main screen:-
● Select: Tools - Saw label designer
At the Saw sub-menu select the saw type: Online label PC

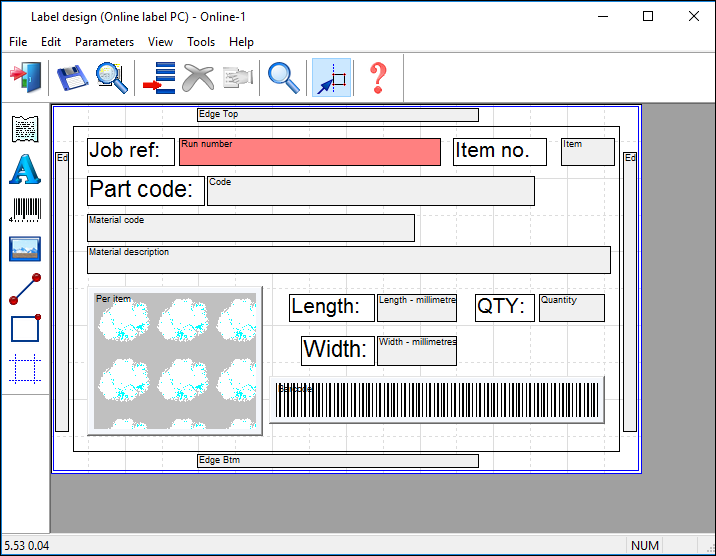

The label designer screen is shown.
● Create the label design in the usual way
Not all data object or settings are available for this saw (these options are greyed out).
- Each major grid line represents 1 cm and all dimensions in the label designer in centimetres.
