Detailed settings for each drawing element
Each drawing item has a set of properties such as position, length, and colour. These can be used to check the object details and to set accurate sizes of each part of the object. At the Drawing library:-
Select object (or
use the 'Select' tool)
● Select: Edit - Properties
or
Select
the Toolbar option
or
Right click Properties

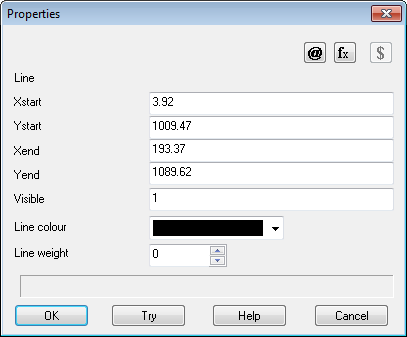

Xstart, Ystart - coordinates of start point
Xend, Yend - coordinates of end point
Visible - visible (1), not visible (0)
Line colour - colour of line
Line weight - line thickness
@ fx $ - Use these buttons to select formula, variable or look-up items for a property. This creates a Parametric drawing. Make sure that each formula starts with symbol: =
Try - refresh drawing
Status line - details of the current property
