Detailed settings for each drawing element
Each drawing item has a set of properties such as position, length, and colour. These can be used to check the object details and to set accurate sizes of each part of the object. At the Drawing library:-
Select object (or
use the 'Select' tool)
● Select: Edit - Properties
or
Select
the Toolbar option
or
Right click Properties

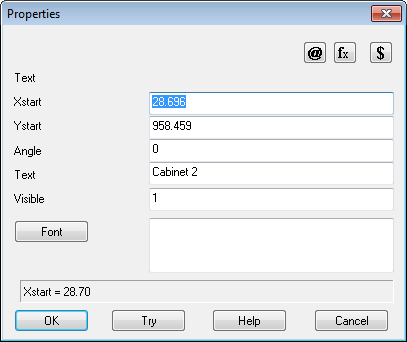

Xstart, Ystart - coordinates of start corner
Angle - angle to Y direction in degrees
Text - text
Visible - visible (1), not visible (0)
Font - font selection for text
Angle - use this to change the angle at which the text is shown
Font - click on the button to display a font selection dialog. An example of the font selected is shown in the box at the right of the button
@ fx $ - Use these buttons to select formula, variable or look-up items for a property. This creates a Parametric drawing. Make sure that each formula starts with symbol: =
Try - refresh drawing
Status line - the status line at the bottom of the dialog shows the details of the current box
