Detailed settings for each drawing element
Each drawing item has a set of properties such as position, length, and colour. These can be used to check the object details and to set accurate sizes of each part of the object. At the Drawing library:-
Select object (or
use the 'Select' tool)
● Select: Edit - Properties
or
Select
the Toolbar option
or

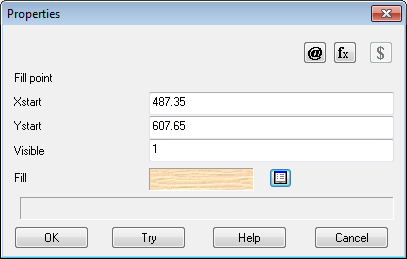

Right click Properties
Xstart, Ystart - coordinates of fill point
Visible - visible (1) or not visible (0)
Fill - colour or pattern fill
Try - refresh drawing
Status line - the status line at the bottom of the dialog shows the details of the current box
OK - finish
Click
on the list box to choose the fill colour or pattern
● Select a type of fill (Colour, picture ...)
Select colour,
picture ... for the fill
OK confirm fill
