Settings for the Wall drawing object
Each drawing object has a set of properties such as position, length, and colour.
Set the drawing to 'select' mode
Select the object
with the mouse

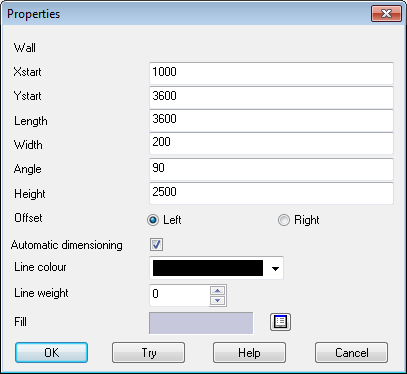

● Right click to pop up a list of editing tools and properties.
Xstart, Ystart - coordinates of start point for wall
Length - length of wall
Width - width of wall
Angle - angle of wall to vertical or horizontal
Height - height of wall
Offset - left or right
Automatic dim. - on or off
Line colour - colour of wall lines
Line weight - line thickness
Fill - fill colour or pattern
Offset - determines whether the wall is drawn from left to right or right to left
Automatic dimensioning - a dimension line can be drawn automatically for the wall. The dimension lines are shown via: View - Automatic Dimensioning - Walls
@ fx $ - Use these buttons to select variables, formula or look-up items for a property. This creates a Parametric drawing. Make sure that each formula starts with '='
Try - refresh drawing
Status line - the status line at the bottom of the dialog shows the details of the current box
