Settings for the Window drawing object
Each drawing object has a set of properties such as position, length, and colour you can change.
Set the drawing to 'select' mode
Select the object
with the mouse

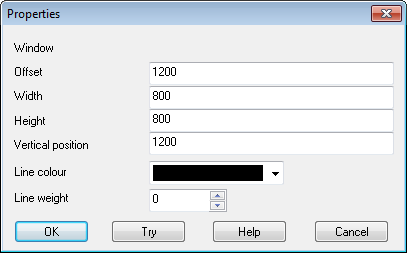

● Right click to pop up a list of editing tools and properties.
Offset - from start of wall
Width - width of window
Height - height of window
Vertical position - from bottom of wall
Line colour - colour of wall lines
Line weight - line thickness
Offset - determines distance of door from start of wall
@ fx $ - Use these buttons to select variables, formula or look-up items for a property. This creates a Parametric drawing. Make sure that each formula starts with '='
Try - refresh drawing
Status line - the status line at the bottom of the dialog shows the details of the current box
