Settings for the Door drawing object
Each drawing object has a set of properties such as position, length, and colour you can change.
Set the drawing to 'select' mode
Select the object
with the mouse

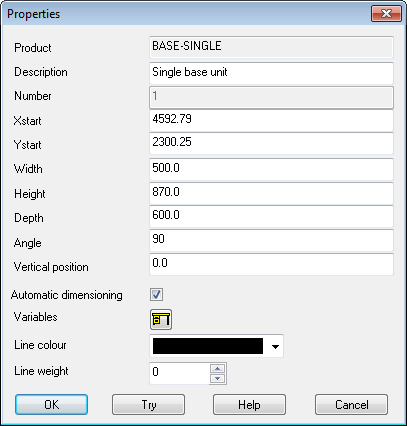

● Right click to pop up a list of editing tools and properties.
Code - product code
Description - product description
Number - number of product on drawings
Xstart, Ystart - coordinate of reference point for product
Width - width of product
Height - height of product
Depth - height of product
Angle - angle to vertical or horizontal
Vertical position - from bottom of floor
Automatic dim. - on or off
Variables - product variables
Line colour - colour of wall lines
Line weight - line thickness
Fill - fill colour or pattern
Select an object and then Right click to view the properties.
Automatic dimensioning - dimension lines are drawn automatically for the product if this value is set to '1'. The dimension lines are shown when you select the menu option VIEW - AUTOMATIC DIMENSIONING - PRODUCTS.
If you select a group of objects or lines the only property that applies to the group is the colour.
@ fx $ - Use these buttons to select variables, formula or look-up items for a property. This creates a Parametric drawing. Make sure that each formula starts with '=' if you enter a formula manually.
Try - select this to refresh the drawing
Status line - the status line at the bottom of the dialog shows the details of the current box
