Settings for the Link drawing object
Each drawing object has a set of properties such as position, length, and colour.
Set the drawing to 'select' mode
Select the object
with the mouse
● Right click to pop up a list of editing tools and properties.

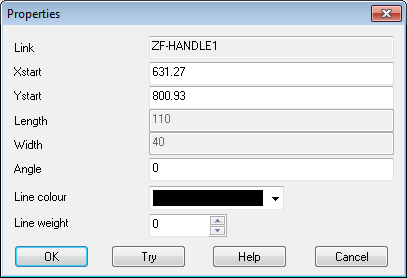

Select the object with the 'Select tool' and Right click to pop up a list of editing tools and properties.
Xstart, Ystart - coordinates of corner point for bounding rectangle
Length - length of rectangle enclosing drawing
Width - width of rectangle enclosing drawing
Angle - angle of link with respect to main drawing
Scale - scale of drawing
Font - size of font
Line colour - colour of line
Line weight - line thickness
@ fx $ - Use these buttons to select formula, variable or look-up items for a property. This creates a Parametric drawing. Make sure that each formula starts with '=' if you enter a formula manually
Try - select this to refresh the drawing
Status line - the status line at the bottom of the dialog shows the details of the current box
