Settings to define the format of the external data for import
These parameters control how parts, board and patterns are imported. At the import screen:-

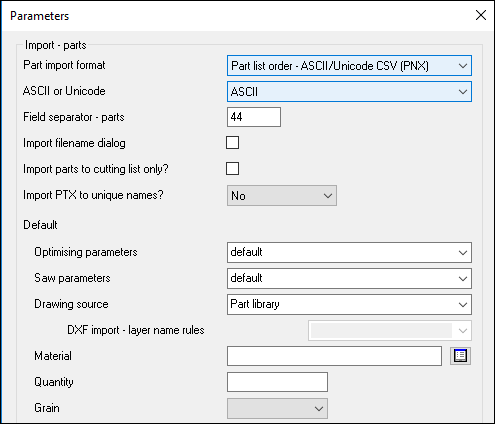

● Select: File - Parameters
The parameters for all the data types (parts, boards, patterns ...) are shown but only those relevant to the current import are enabled.
Select the import format (e.g. Part import format) and check the values of the other parameters.
The parameters set items like the default names for imported files, the character used as a data separator, and whether the file is deleted after import ...
- OK to confirm changes
Other options
Help - information about this screen
Cancel - abandon changes
