Small parts pass routing - max smallest side



Machining parameter to set whether two passes are used for small parts routing






If the smallest side is less than or equal to this dimension - two passes are used

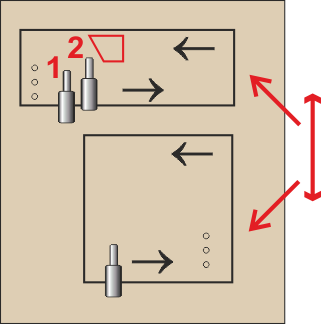

On the first pass the rout does not cut through the material and a second rout is used to finish the cut. For smaller parts this helps to keep the part firmly held by the Vacuum table.



This value can be overridden by Material parameter settings.



Notes



- Can also be set as a Material parameter at material level.
