Nested patterns - parts

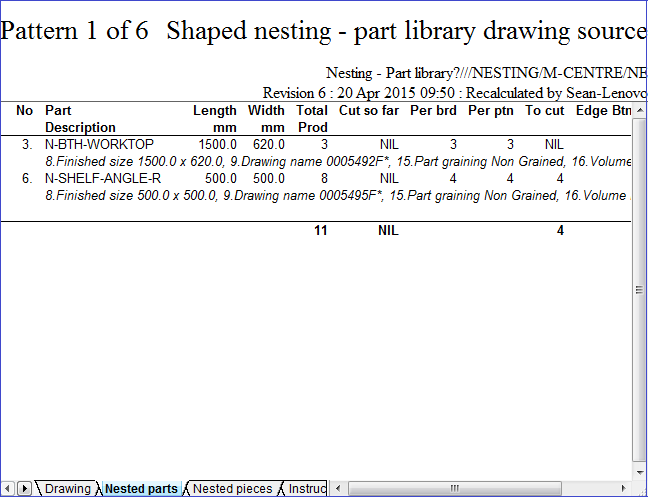

Report showing the details of each part on the pattern



Each pattern contains several screens of information.







Click on the tabs at the foot of the screen to see other pattern details.



Use the Navigation buttons, Summaries menu or Stacked toolbar to browse the summaries. Many Review Runs options are also available on the top Toolbar



navbuttons.gif Navigation

zoom-icon.gif Zoom display in / out



Nesting_toggle.png Move between report levels

printer-icon.gif Print current report

doorexit-icon.gif Exit



Report content



This screen shows the sizes and quantities of each part on a pattern. The items of information shown are:-



Item number - number of part in part list

Description - part description

Part length and part width



The length and width columns can be in the order Length/Width or Width/Length.



Total prod - total production including overs and unders

Cut so far - parts cut so far (not including this pattern)

Qty per Brd - quantity per board

Qty per ptn - number of parts on pattern: Qty per board x board qty

Still to cut - parts remaining to be cut after this pattern



Total produced = cut so far + quantity per pattern + still to cut





Notes



- This section of the report is called: 'Nested parts'. To add or remove this information from a printout:-



Move to a pattern

Select: File - Parameters - Printed



Add or remove 'Nested parts' from the printed report, as required.
