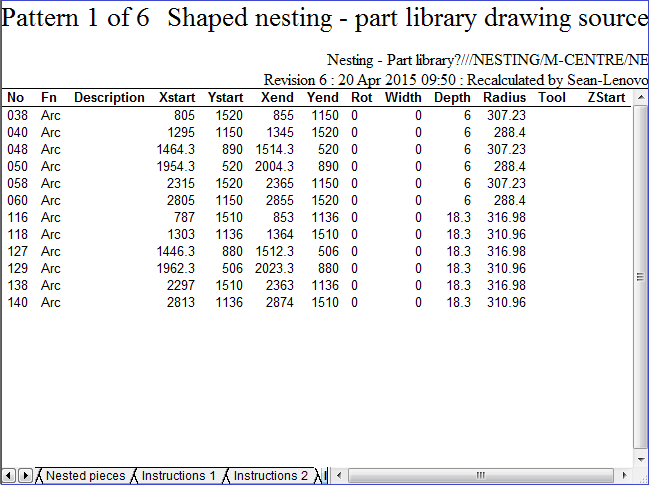

Report showing the cutting instructions for a pattern
Each pattern contains several screens of information. This tab shows the machining instructions for arcs, cutouts, pockets.
Click on the tabs at the foot
of the screen to see other pattern details.
Use the Navigation buttons, Summaries menu or Stacked toolbar to browse the summaries. Many Review Runs options are also available on the top Toolbar
Navigation
Zoom display in / out
Move between report levels
Print current report
Exit
Report content
The report shows the details for:-
Arc routs
Cutouts
End grooves
Pockets
The items of information shown are:-
Instruction number
Function code
Description
Xstart
Ystart
Xend
Yend
Rotation
Width
Depth
Radius
Tool
For printing the instructions reports form a continuous report
MPR(X) - Where MPR(X) part routing is used the details are shown in the MPR(X) file and not at the Nested pattern screen.
