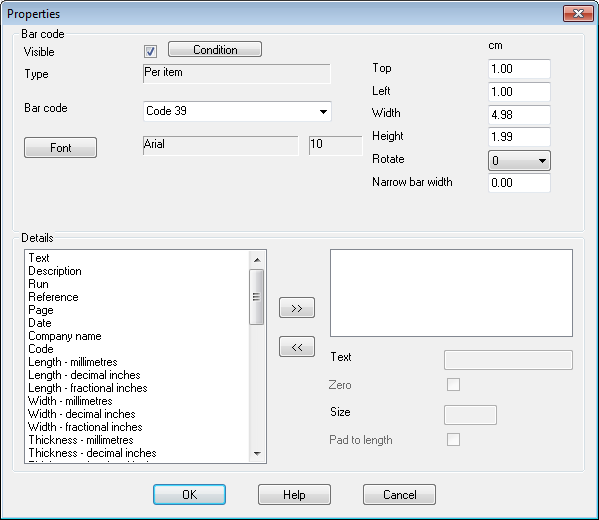

Bar codes dialog



Select type of bar code



At the Form Designer screen:-



 Select: Tools - Bar code

or

barcode-icon.gif Select option on the Object Toolbar



The program may prompt for the properties and for Form design also prompts the action of the bar code; Per item or Per list



 Select the type of bar code



Per list - the bar code appears once on each form

Per item - the bar code applies to each data item



Per list might be something like a customer reference on an Invoice or despatch note for a customer. Per item might be a list of Products with a bar code next to each product.



Use the options to set up the Bar code. More details are given in the help topic: Bar codes - forms and labels






Bar code operations



Combo-button.gif Rotate bar code 0,90,180,270 degrees



Narrow bar width - enter a value for the width of the individual element. For example, 0.01 cm



Size - number of characters



tickbox9.gif Pad to length



Set this value to fill up the bar code to the specified size



(Rotate, Narrow bar width, and Pad to size are not available for labels printed at the saw)



The following facilities are available for barcodes in forms / labels:



Rotate



If the rotation angle is changed from 0/180 to 90/270 then the Width and Height fields are swapped. e.g. a barcode on 0 degrees has a width of 5 cm and a height of 2 cm but when it is rotated 90 degrees the width is 2cm and the height is 5 cm.



Pad to length



For example, if the size is set to 50 characters each bar code is 50 characters long filled with spaces where necessary.



Narrow bar width



By default a bar code is stretched to fit the bar code width. If the narrow bar width value is specified the barcode uses that value for the narrow bar; barcodes with less information are shorter in the width.



The narrow bar width value can be any value from 0.01 upwards in 0.01 increments.
