Add a new material or board
To enter a new Material:-
● Move to the Material pane
● Move to the position where the material is to be added
● Select: Edit - Insert line [ F6 ]
or
Select the Toolbar
option

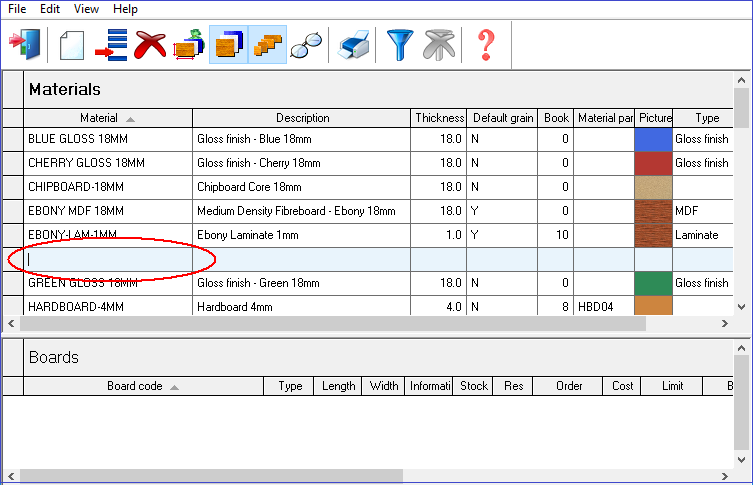

The program displays a blank New row
Enter the new material details at the blank line starting with the material code. The material code must be unique.

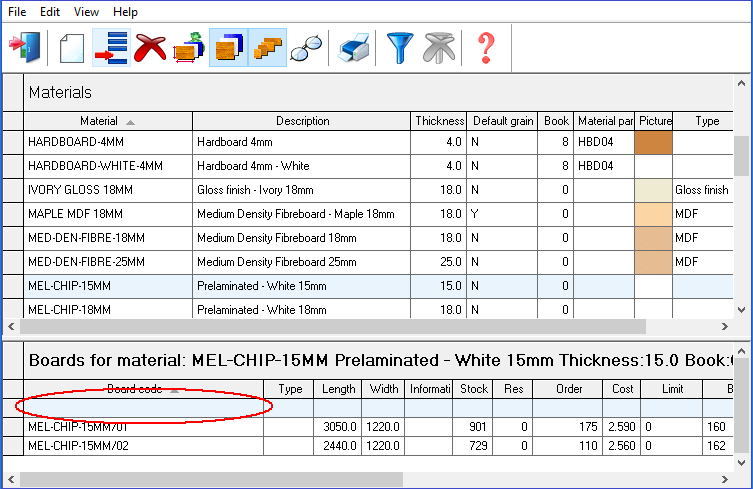

To enter a new Board
● Select the required material
The Boards for that material (if any) are listed in the pane below.
● Move to the Boards pane
● Select: Edit - Insert line [ F6 ]
or
Use the ToolBar option
The program displays a blank New row. Enter the board details.
Each board must have a unique code.
Edit cell contents
The usual keyboard/mouse options are available for editing within the cell. Use Ctrl C for copy and Ctrl V for pasting all or part of the cell contents.
In addition there are the options to copy the contents of the cell above.
[F10] - copy the cell above
[Spacebar] - copy the cell above
Notes
- The board code has to be unique across all the boards not only those for the current material
