Custom Summary



Fully customised summary reports



These are reports that can be completely customised using the Form design option. Once created these reports are then available in Review runs (on the stacked Toolbar) in the same way as the standard (predefined) reports or summaries. At the Review runs screen:-



 Select: Summaries

 Select the report from the custom report area at the foot of the menu

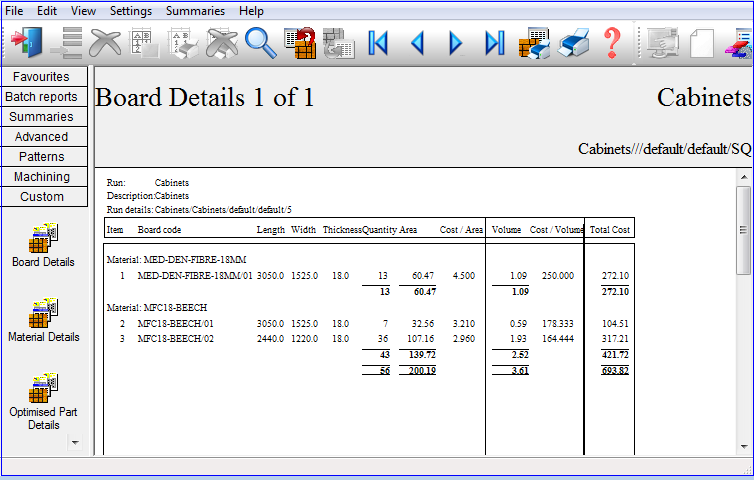

If any custom reports are defined they appear in a list at the foot of the Summaries report bar with the names set when they were created. Reports can be viewed and printed in the same way as predefined summary reports.






To create a new custom report, at the main screen:-



 Select: Form Design - Runs



The program moves to Form design.



To edit an existing custom report:-



 Move to Form Design from the main menu

 Select: Form Design - Runs

 Select the report

or

 Move to the report (this must be an existing Custom report)

formsforruns256.gif Select Form design at the Report screen (Settings - Form Design)



The following types of custom report can also be included on the custom menu in Review runs.



 Select: Form Design - Part lists / Cutting lists



For the custom form to appear in Review runs set the label design parameter  'Part lists / Cutting lists' to 'Cutting lists' at the Form Design screen: Parameters - Edit



 Select: Form Design - Cutting Patterns



See the help topic: Review runs - report layout and settings



Notes



 - Demonstration data includes example Custom reports for Runs
