Max distance from edge / centre (rotated board)



Saw parameter to limit the area for tension trims on a board




These values are for a rotated board

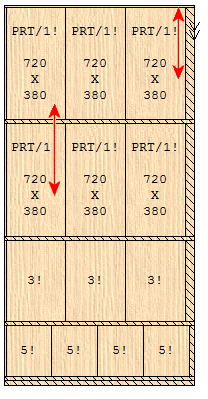

The area allowed for tension trims is defined from the edges of the board or from the centre of the board. In either case use this parameter to the set the maximum distance from the edge or centre allowed for tension trims.



- Enter a measurement (e.g. 400)

or

- Enter a value as a percentage of the board dimension (e.g. 25)



The placement from the edge is set by the saw parameter: Placement from edge or centre of board





Notes



- Can also be set as a material parameter at both board and material level



- CADmatic 3 / 4 only



- If both values are set the greater of the two values (as a measurement) is used





    See also
