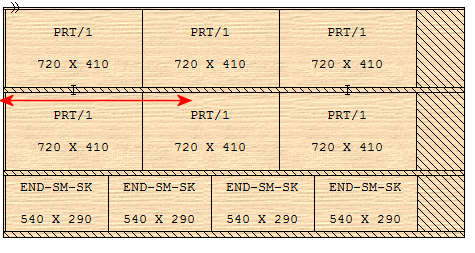

Minimum length of tension trim



Saw parameter to control the use of tension trims




The values can be entered as a measurement and/or as a percentage of the distance in the board direction.



 Enter the values required



The program uses the greater of these values as the limit.



For example:-



Board size: 2440 x 1830

Measurement: 1000

% Board dimension: 50

Minimum value for taking tension trim: 1220





Notes



- Can also be set as a material parameter at both board and material level



- The length of the cut usually determines whether a tension trim is taken or not.



- These values refer to the length of cut for a board that is NOT rotated.



- Only integer values allowed. e.g. 1225
