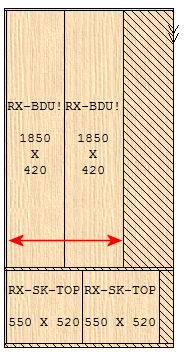

Minimum length of tension trim (rotated board)



Saw parameter to control the use of tension trims


These values are for a rotated board



The values can be entered as a measurement and/or as a percentage of the distance in the board direction.



 Enter the values required



The program uses the greater of these values as the limit.



For example:-



Board size: 2440 x 1830

Measurement: 800

% Board dimension: 50

Minimum value for taking tension trim: 915





Notes



- Can also be set as a material parameter at both board and material level



- The length of the cut usually determines whether a tension trim is taken or not.



- Where a board is rotated the tension trim (for example a rip tension trim) may need to be shorter so the minimum value may need to be different to the value for a non-rotated board.



- Only integer values are allowed, e.g. 835
