Front laminate description



Predefined information box (field) for the description of laminating material






Laminating data typically consists of a code, description and other details. For example:-



WHITEASH/01 - White ash laminate 1.5mm

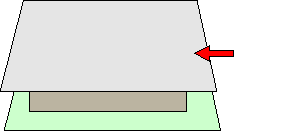

For each face of a part this data is linked to a pair of information boxes:-



WHITEASH/01                 >> Front laminate (laminate code)

White ash laminate 1.5mm    >> Front laminate description



When a cutting list is created if the Front laminate box is set the program uses this code to get the correct laminate material description from the Edging library (or from the Board library)



This makes the data available for use on, custom reports, export, printed labels etc.





Notes



- At the Information box tree this box is in the Laminates branch

- Information box: Front laminate must be set for this parameter to operate

- This information box is only filled out for core parts (not for parts created from the laminate or edging codes)

- If necessary the description is truncated to fit the space allowed for the information box

- Check the settings for Edging and laminates in: System parameters
