Part list option (View menu) to show the material in a pop-up window at the Board list screen
The material picture from the Board library can be shown at the Board list screen. This can be useful for identifying boards.
At any part list screen:-
● Select: View - Drawing
Check
/ Uncheck the menu option to show / hide the picture.
The pop-up is located at the top right - use the mouse to re-position.
Close the Window or use the View menu to turn off the material picture.

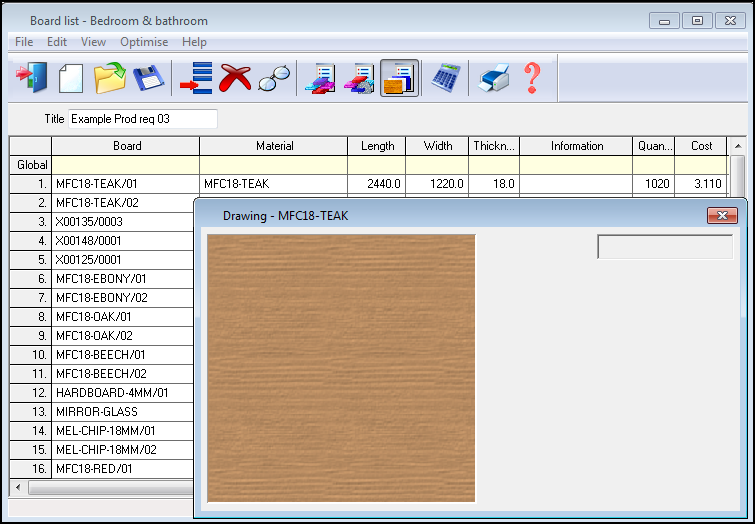

This is the material picture from the Board library.
