Do not place part on the edge - information box



Pre-defined information box (field) for nesting data






Allows a value for shaped nesting to be set for individual parts at the Part list or part library.



If this is set to Y or 1 this indicates that this part cannot be placed on the edge of the board.



Y - do NOT place part on the edge

or

1 - do NOT place part on the edge



If any other value is set (e.g. N) the part can be placed on the edge

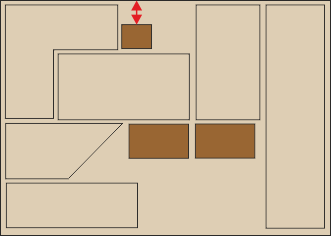

The minimum distance these parts are positioned away from the edge of the board is defined by the parameters: Min. offset from the length edge and Min. offset from the width edge
