Import parameter to set the type of import for boards
The program can import board sizes in different formats:-
Board list order - ASCII/Unicode CSV (BDX)
User defined order - ASCII/Unicode CSV
User defined order - Excel (XLS)
User defined order - Excel (XLSX)
Select the option required
Set up
There are several other settings to consider for each format. Work through the Import parameters to complete the set up. For more information see the help topic: Import parts, boards, requirements, patterns - Overview
For the 'User defined order' options the layout of the import file is specified in the Board list Import parameters (Main screen - Parameters - Board list Import parameters). The board list import parameter list to use for any import is selected at the Import screen.
The option to enter 'Parameters for import' is only used for the 'User defined' import choices.
Notes

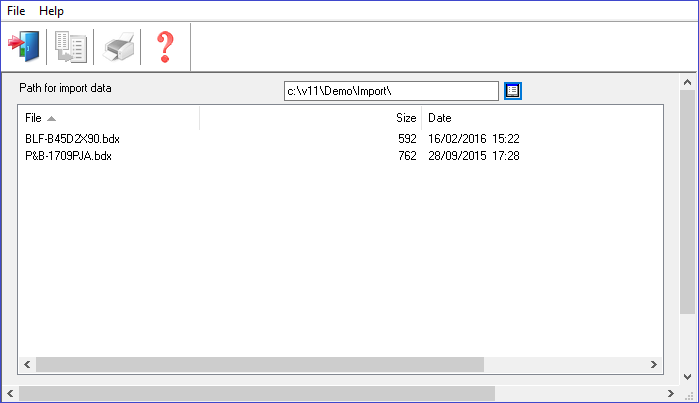

- The Import parameters are available at the Import dialog (File - Import parts. File - Import parameters)
