Requirements parameter to set the columns (fields) in the part list to use for identifying duplicate parts
A duplicate part is one where the parts are labelled differently but are essentially the same; typically of the same material and size. Use this parameter to set which fields have to match for different parts to be defined as duplicates.
● Enter part list column (field) number(s) in the format: 1 2 8 etc.
or

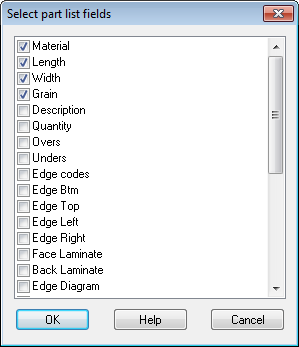

Click on the list button
to select columns (fields)
This definition is used when creating cutting lists from Product requirement or from Quotes / Orders.
Notes
- If entering the numbers manually the standard part list columns are represented by the numbers 1 to 9 and any information boxes are specified by a preceding hash. Where the number may be ambiguous separate the numbers with a space, for example:-
23489#6 7
The order of the numbers does not matter.
