Pre-defined information box (field) for nesting
Use this parameter to enter a Part identification for nesting.
Nested patterns generate the following file types:-
PRN
CSV
The PRN file contains the part list information and the CSV contains the pattern information.
Each file refers to the parts in the original cutting list.
The reference for each part in these files can either be the item number in the Cutting list or custom value in the Part ID information box. If this information box is set the values in this box are used otherwise the part item number from the Cutting list is used.

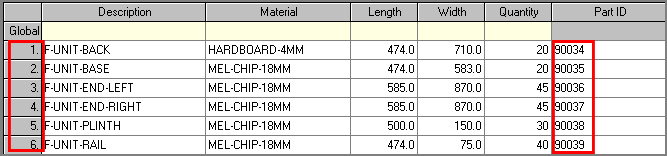

In the example below the Part ID numbers are used as this information box is set.
Set up
The Part ID information box is set via: Information Box parameters
Notes
- If the information box is left blank for ALL parts in the part list item numbers are automatically assigned to the information box on creation of the cutting list
