Maximum Board dimensions for saw



Saw parameter to set the limits for board length and width when loading on to the saw






- Enter a value for the maximum board dimensions in the Length and Width



Set these values to restrict which boards can be rotated and which boards can contain a head cut and to not use boards that are too large (for example offcuts)

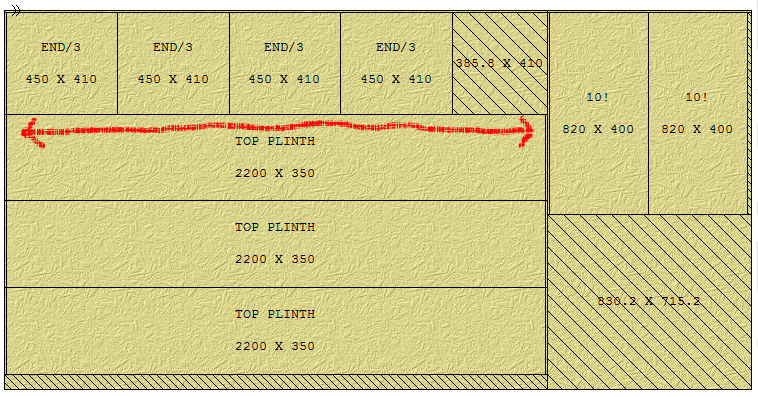

In the above example the optimiser does not create a pattern for the board in a rotated orientation because with the long parts rotated the maximum width would be exceeded (where the maximum width is set, for example, to 2100mm).





Notes



- If patterns are created (using pattern amendment) which violate this parameter an error is reported



- Can also be set as a Material parameter at both board and material level.
